Component & Binding

Table of Contents

Introduction

One thing that makes the Internet interesting (for both research and education) is the applications (or services) running on top of it. Some of these services only involves standalone servers, such as Web server, DHCP server, and email server. It is quite easy to deploy this kind of services inside the emulator. However, many useful services have their own infrastructure consisting of a large number of servers, such as DNS, Blockchain, Darknet, Botnet, Content Delivery Network (CDN), etc. Setting up such an infrastructure is non-trivial, because it involves configuring many nodes and their relationships.

When building a service for the emulator, whether it is a standalone service or a service infrastructure, we would like this service to be independent from the underlying Internet. This way, a service is portable, and can be deployed in different Internet emulators.

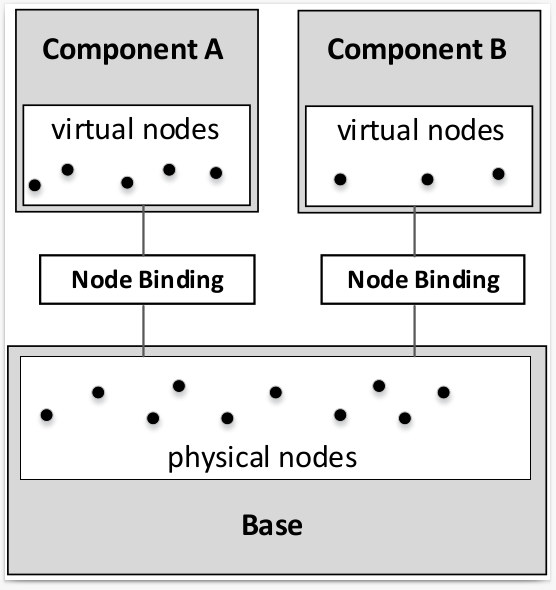

We use a layered design. There are two types of layers in the SEED emulator: the base layer and the service layer. The base layer consists of hosts, networks, and routing. At this layer, each node corresponds to a “physical” entity (container). Each service layer consists of a service (or a service infrastructure). Nodes at the service layer are virtual nodes, not physical ones. Basically, a node is represented by a symbolic name. All the configuration and setup on a service node will simply use that name.

The service layer will never reference any physical node at the base layer; therefore it can be built independently from the base layer. We call each service a component. To deploy a service on top of a base layer, we bind the virtual nodes at the service layer to the physical nodes at the base layer, just like plugging a chip (service) onto a circuit board (base).


A Simple Component

We use a very simple example (web) to show how to add a component to the emulator. First we create a component, and then add two nodes to it. These nodes are virtual nodes, i.e., they are not mapped to any container yet; they are simply names.

# Create a component, and then add a node to it
web = WebService()
web.install('webnode0')
web.install('webnode1')

To add a component to the emulator, we need to map each of the virtual node to a physical node. This process is called binding. Once a virtual node is bound to a physical node (i.e., a container), all the configuration made to the virtual node will be applied to the physical node. There are many ways to bind a virtual node to a physical node. The following example binds the virtual node webnode0 to the physical node named node0 in AS-150; it also binds the virtual node webnode1 to any node in AS-151. For more details on binding, see this section.

# Bind virtual node to physical node
emu.addBinding(Binding('webnode0', filter = Filter(nodeName = 'node0', asn = 150)))
emu.addBinding(Binding('webnode1', filter = Filter(asn = 151)))

If multiple candidates match the filter, which one is selected depends on the action parameter:

Here is an example:

emu.addBinding(Binding('webnode1', filter = Filter(asn = 151), action = Action.NEW))

After binding a virtual node to a physical node, if you would like to give the physical node a more meaningful name (for the visualization purpose), you can set its display name.

emu.getBindingFor('webnode0').setDisplayName('Web Server 0')
emu.getBindingFor('webnode1').setDisplayName('Web Server 1')

A Complex Component (DNS)

The previous web component are quite simple, because the nodes in this component are independent. The DNS component is more complicated, as it involves many nodes with dependency. The example B01-dns-component shows how to build such a component, and the example B02-mini-internet-with-dns shows how to bind the component to a pre-built emulator.

The goal of a DNS component is to set up the DNS infrastructure, including configuring the zone files for each domain hosted in this infrastructure. Each DNS server inside this component is a virtual node. In the following code snippet, we show how we create a DNS infrastructure. The dns.install(name) will create a node using name if such a node does not exist. We can then install zones on these virtual nodes, and configure their zone files. These nodes are virtual nodes; they are just names, and they do not bind to any existing physical node in the emulator. This makes the component portable.

dns = DomainNameService()
dns.install('root-a').addZone('.').setMaster()
dns.install('root-b').addZone('.')
dns.install('com').addZone('com.')
dns.install('ns-example').addZone('example.com.')
dns.getZone('example.com.').addRecord('www A 5.5.5.5')

Binding and Filter

To bind a virtual node to a physical node, we add a binding for this virtual node. The constructor of the Binding class is the following:

def __init__(self, source, action = Action.RANDOM, filter = Filter()):

The constructor of a filter is the following:

def __init__(
    self, asn: int = None, nodeName: str = None, ip: str = None,
    prefix: str = None, custom: Callable[[str, Node], bool] = None,
    allowBound: bool = False
)

All these parameters are constraints. If more than one constraint is set, a physical node must meet all the constraints to become a candidate.
